TestScatter2
TestScatter2 package does a visual review of Scatter class features. Here there are some screenshots:

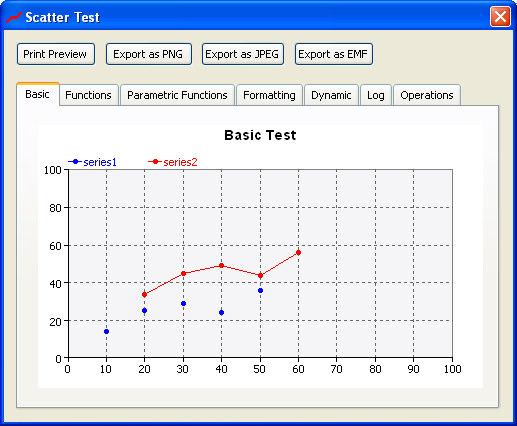

General view
Demo program contains control samples in different tabs.
All of them have different export possibilities like:
Print Preview
Export as PNG
Export as JPEG
Export as EMF
Copy to Clipboard
Scatter controls lets to export in more formats.
|
|
|

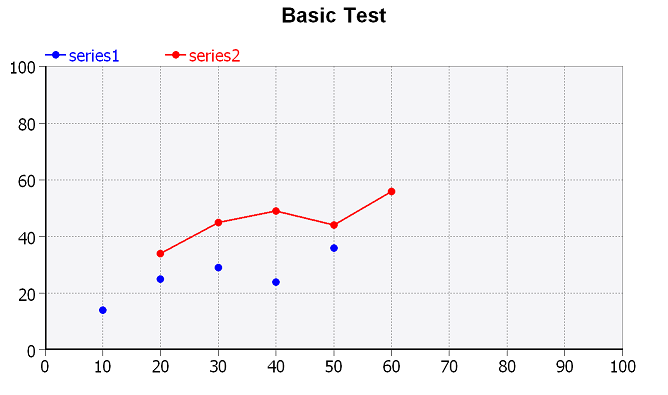

Basic Test
Scatter lets to show different data series changing various parameters like color, line width, dot style.
|
|
|

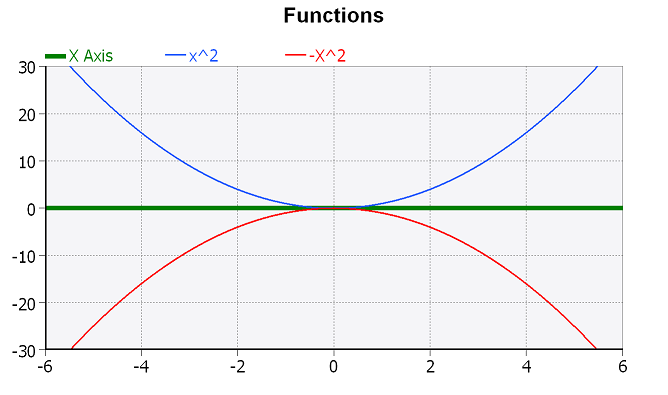

Functions
Using PlotFunction() it is possible to directly draw functions instead of just stored data.
|
|
|

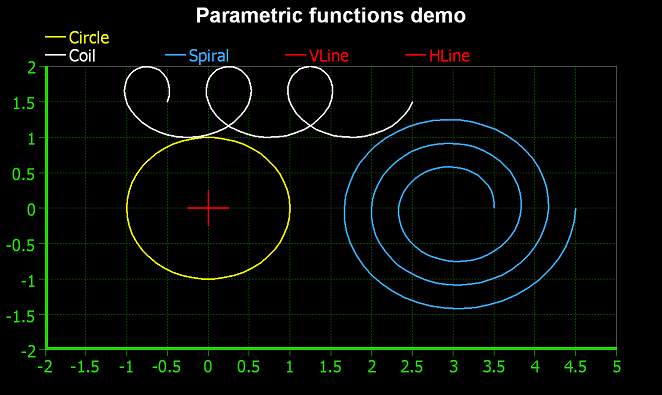

Parametric Functions
While PlotFunction() functions just return the vertical axis, PlotParaFunction() functions return the XY coordinates of every point.
This options lets full freedom inserting XY series.
|
|
|

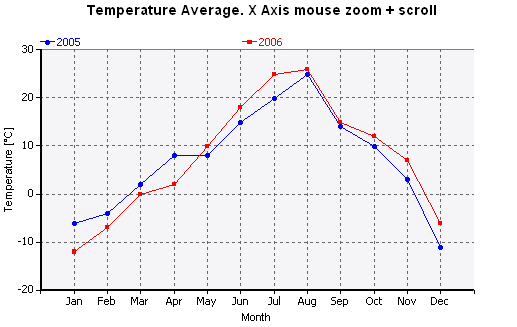

Formatting
Scatter lets to insert X and Y labels, XY scaling and range, point format and size and standard or user defined axis labels formating.
In addition SetMouseHandling(true) lets to use the mouse to zoom and move the graphs in X axis.
|
|
|

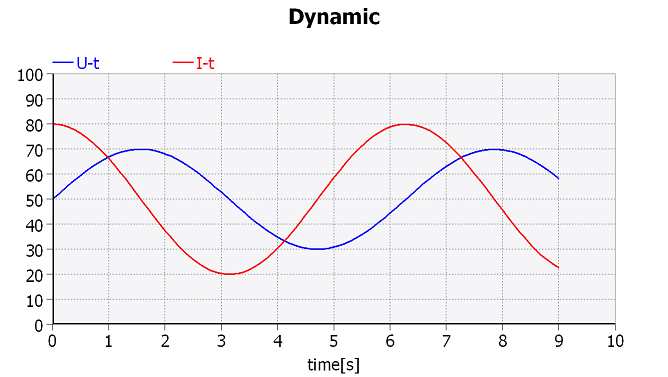

Dynamic
Scatter is not an static control and easily lets to include dynamic series handling.
|
|
|

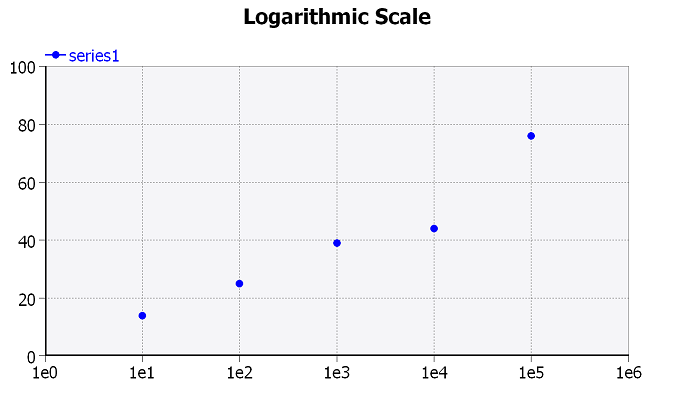

Log
Versatile axis scaling and labeling through cbModifFormatX and cbModifFormatY lets to include not only time and date axis but also logarithmic ones.
|
|
|

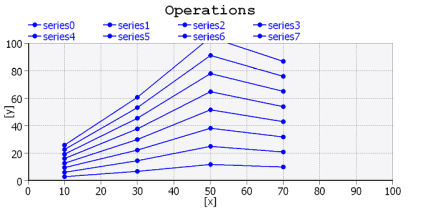

Operations
Series dynamic handling is easy. This demo lets the user to add and remove series.
|
|
|

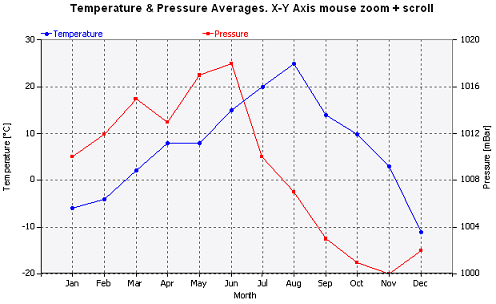

Secondary Y axis
It is possible to add a secondary right side vertical Y axis and scale data series to it.
In addition SetMouseHandling(true, true) lets to use the mouse to zoom and move the graphs in X and Y axis.
|
|
|

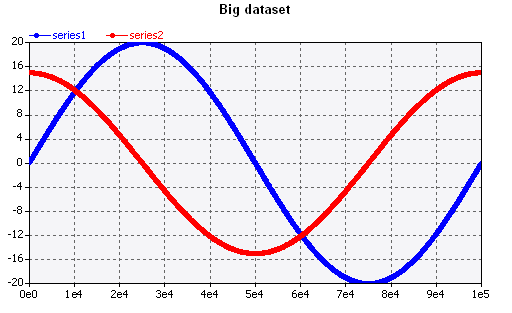

Big datasets
Big datasets are hard to handle. However there are two functions that speed up dramatically Scatter response in X axis sequential datasets like time series:
SetSequentialX: Indicates that the data has been sequentially inserted following X axis
SetFastViewX: Indicates that it will be viewed a point per horizontal pixel. This point will be the average of all data that is in that pixel
|
|
|
|
|
|
