If your target is small disk space, you should rather allocate data in memory in reasonable common sizes, semantically grouped together, and run that through zlib compression, if those data resemble at least some patterns, this should save lot more, than packing them into bits and later having headache when you will want to extend them a bit.

Hello,

I was thinking about using Bits as an efficient data structure to write my data to disk. However, I noticed that this data structure is quite closed and does not allow callers to retrieve a pointer to the internal buffer of bits and neither does it allow itself being constructed from existing buffer and alloc variables.

Would it be a good idea to allow this, or have a similar data structure that allows retrieval of the data structure? If not, why do you think so? I now manually edited some support in, to see if my efficient idea works out well!

Thanks!

crydev

crydev wrote on Wed, 11 January 2017 17:07

Hello,

I was thinking about using Bits as an efficient data structure to write my data to disk. However, I noticed that this data structure is quite closed and does not allow callers to retrieve a pointer to the internal buffer of bits and neither does it allow itself being constructed from existing buffer and alloc variables.

Would it be a good idea to allow this, or have a similar data structure that allows retrieval of the data structure? If not, why do you think so? I now manually edited some support in, to see if my efficient idea works out well!

Thanks!

crydev

I guess this is valid idea. Adding to RM.

Mirek

Hello,

I changed the Bits class to expose its buffer and allocation variables, and ported my code using Vector<bool> to its equivalent using Bits. However, I realized that setting billions of bits in hot loops is very inefficient in Bits. The speedup I get from having to write 8 times less data to disk is eliminated by the slow computations.

Why is it so inefficient? Would it be a good idea to keep using Vector<bool>, and convert to Bits before writing to the file?

Thanks,

crydev

A ran the following code in a performance test 100,000 times.

// Original function implementing Vector<bool>.
const int VectorBoolOrBitsetTestOriginal(bool* const buffer, const bool* const rand)
{
	int x = 0;
	for (int i = 0; i < 4096; ++i)
	{
		if (rand)
		{
			++x;
		}
		buffer[i] = rand;
	}
	return x;
}

// Different function implementing Bits.
const int VectorBoolOrBitsetTestBitSet(Bits& buffer, const bool* const rand)
{
	int x = 0;
	for (int i = 0; i < 4096; ++i)
	{
		if (rand)
		{
			++x;
		}
		buffer.Set(i, rand);
	}
	return x;
}

// Different function implementing std::bitset.
const int VectorBoolOrBitsetTestStdBitSet(std::bitset<4096>& buffer, const bool* const rand)
{
	int x = 0;
	for (int i = 0; i < 4096; ++i)
	{
		if (rand)
		{
			++x;
		}
		buffer.set(i, rand);
	}
	return x;
}

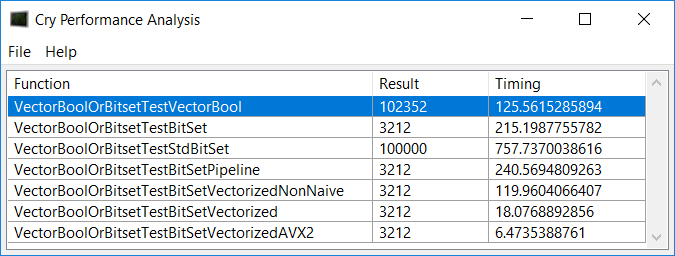

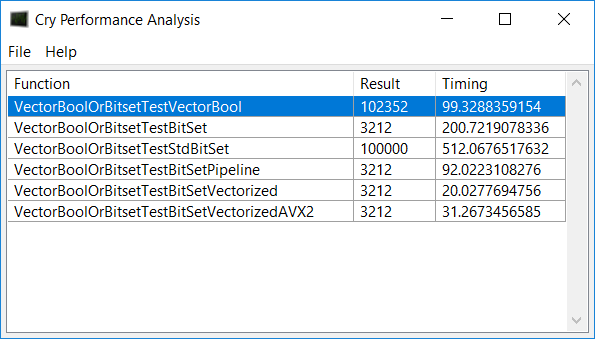

The result is as follows, Bits being approximately a factor 10 slower. std::bitset already seems to be a twice as fast:



crydev

const byte *ReadRaw(int& count_of_bytes);
byte *WriteRaw(int count_of_bytes);

P.S.: Are you sure that your Test code is doing what you wanted it to do? It looks to me like there should be something like *rand++ in it...

mirek wrote on Tue, 25 April 2017 10:34

P.S.: Are you sure that your Test code is doing what you wanted it to do? It looks to me like there should be something like *rand++ in it...

The above testing code is a subset of my real code, where x is a value I just introduced to have a return value to show. It does not represent anything, and shouldn't be taken into account. The rand variable is a pointer to an array of random bools. I wanted to use it to create some randomness, but I didn't really succeed there. I solely wanted to point out the runtime of the different implementations.

Any ideas about the proper "raw data" interface?

It is still weird that you are getting different numbers than me.

Could you perhaps try my benchmark?

Are you benchmarking "release" mode?

What CPU / Compiler are you using? Do you have latest theide (with FAST release mode always on)?

mirek wrote on Tue, 25 April 2017 13:39

It is still weird that you are getting different numbers than me.

Could you perhaps try my benchmark?

Are you benchmarking "release" mode?

What CPU / Compiler are you using? Do you have latest theide (with FAST release mode always on)?

I updated my TheIDE to the latest version, but it did not make a difference. I am using the Visual C++ compiler from Visual Studio 2015. My CPU is a Core i7 2600k. I compiled with Release mode, and the following compiler flags: -O2 /GS- /Qvec-report:2

What is FAST release mode? I also tried your RTIMING option, but it gives me the same results as my own measurement.

crydev wrote on Tue, 25 April 2017 14:03

mirek wrote on Tue, 25 April 2017 13:39

It is still weird that you are getting different numbers than me.

Could you perhaps try my benchmark?

Are you benchmarking "release" mode?

What CPU / Compiler are you using? Do you have latest theide (with FAST release mode always on)?

I updated my TheIDE to the latest version, but it did not make a difference. I am using the Visual C++ compiler from Visual Studio 2015. My CPU is a Core i7 2600k. I compiled with Release mode, and the following compiler flags: -O2 /GS- /Qvec-report:2

What is FAST release mode? I also tried your RTIMING option, but it gives me the same results as my own measurement.

Weird the only difference seems to be CPU (i7 4771 here)...

Have you tried my benchmark as it is?

That said, even if those numbers you are getting were real, I guess it is now close to Vector<bool> anyway.
